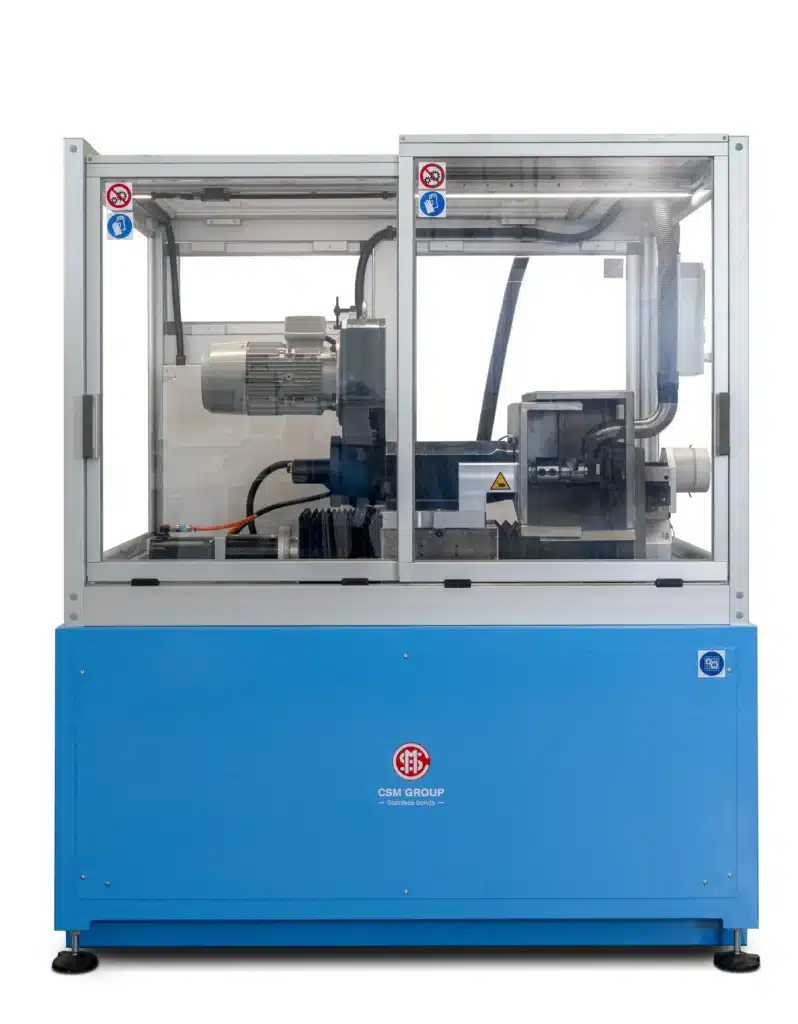

The CSM single end trim machine is designed for the precise trimming of electric heating element ends. This solution effectively removes magnesium oxide (MgO) and the tubular sheath, ensuring the exact terminal pin length with high precision and repeatability.
Available in manual or automatic double-end versions, it is perfectly suited for both small-to-medium production and high-volume industrial manufacturing.
The concrete advantages that make the difference

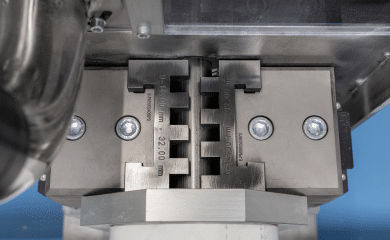

Handles different diameters, sheath materials, and element lengths, making it suitable for both low and high production volumes.

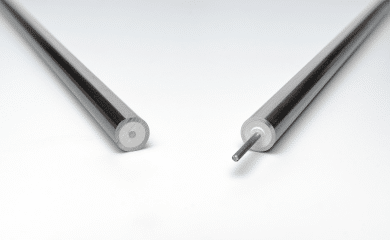

A single pass removes both MgO and metallic sheath; no secondary steps, no manual touch-up. The result: a clean, undamaged terminal pin, every time. Fully automated and repeatable, so quality never depends on the operator.

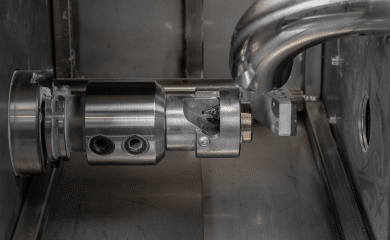

Enclosed cutter heads with vacuum/dust collection ensure contamination-free trimming, and the special cutter design enables quick setup and tool changes.

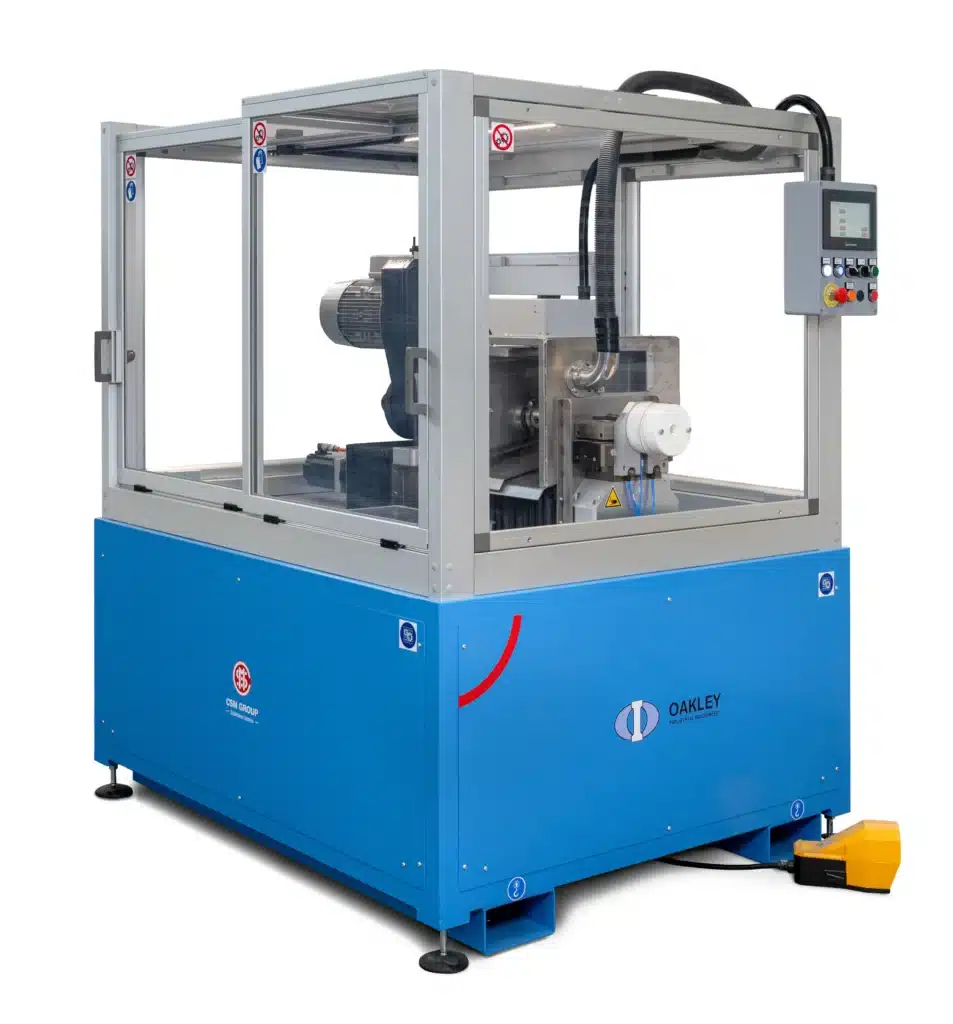

The machine is designed as a manual loading unit that securely clamps the heating elements and processes one end of the electric heater by removing magnesium oxide and the outer sheath to achieve the desired terminal pin length.
During the end trimming process, heating elements are progressively worked to remove the sheath and MgO, exposing the terminal pin.
The machine operates with extreme precision on both the outer tube and the internal insulating material, ensuring consistent, high-quality results.
It is ideal for small to medium production volumes.
The double-end version operates similarly, but thanks to simultaneous machining of both ends and automatic part ejection, it ensures higher productivity.
Length | 1715 mm |
Width | 1400 mm |
Height | 1880 mm |
Weight | 250 kg |
Electric Supply | 220/380/440V – three-phase – 50/60Hz |
Air Supply | 6 bar |
Element Diameters | up to 32 mm |
Max. Trim Length | 38 mm |
Min. Element Length | 100 mm |
Max. Element Length | Any |
